GearUP DC PV Combiner Box 12 Way – Reliable Solar Protection in Bangladesh | ShopZenBD.com
At ShopZenBD.com, we bring you trusted, high-quality solar accessories designed to make your solar power system safer, smarter, and more efficient. The GearUP DC PV Combiner Box 12 Way (2 Strings) is a premium solution for combining, protecting, and managing DC power from multiple solar panels. Engineered for performance and durability, this combiner box is ideal for residential, commercial, and off-grid solar installations across Bangladesh.
If you are looking for a dependable DC Solar PV Combiner Box in Bangladesh that delivers strong protection, easy installation, and long-term outdoor reliability, this 12-Way GearUP model is an excellent choice.
Product Overview
The 12-Way 2 Strings DC Solar PV Combiner Box is designed to safely combine power from up to 12 solar panels, arranged into two separate strings (6 panels per string). It allows clean, organized, and protected DC power distribution before electricity reaches your inverter.
This model comes pre-installed with essential protection components, including MCB, DC fuses, and a Type II DC Surge Protection Device (SPD). These components work together to protect your solar system from overcurrent, short circuits, and sudden voltage surges caused by lightning or grid instability.
Built inside an IP65-rated waterproof enclosure, the GearUP combiner box is perfectly suited for outdoor installations in Bangladesh’s hot, humid, and rainy climate.
Key Features
12-Way Design for Efficient Power Management
The combiner box supports 12 solar panels split into two independent strings, ensuring balanced power flow and improved system efficiency. This design is ideal for medium-scale solar systems that require organized wiring and better current control.

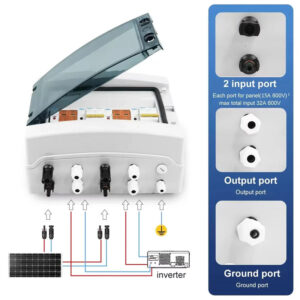

2 Strings In, 2 Strings Out
With dual independent input and output channels, this combiner box is fully compatible with dual MPPT inverters. It provides flexibility in system design and improves energy harvesting by allowing separate string control.

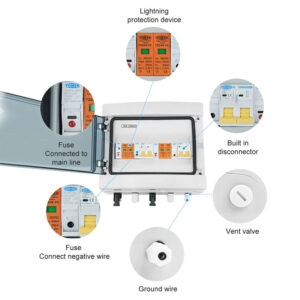

Comprehensive Electrical Protection
Safety is a top priority. This unit includes:
MCB (Miniature Circuit Breaker) for overcurrent protection
DC fuses for individual string safety
Type II DC SPD to protect against lightning and voltage surges
These features significantly reduce the risk of equipment damage, fire hazards, and inverter failure.
IP65 Waterproof & Weather-Resistant Enclosure
The enclosure is made from high-quality ABS/polycarbonate material that is dustproof, waterproof, UV-resistant, and flame-retardant. This ensures reliable performance even in harsh outdoor environments.
Easy & Clean Installation
The combiner box is pre-wired and clearly labeled, saving installation time. It includes UV-resistant PG cable glands and an internal DIN rail system for neat, professional wiring.
Enhanced System Safety
Quick isolation and organized circuit layout help reduce arc faults, short circuits, and system downtime, giving installers and users peace of mind.
Wide Inverter Compatibility
The GearUP 12-Way DC Combiner Box works seamlessly with popular inverter brands such as Growatt, Deye, SMA, Solis, and many other MPPT and hybrid inverters commonly used in Bangladesh.
Technical Specifications
Input Strings: 2 strings (6 panels per string)
Output: 2 outputs (dual MPPT compatible)
Voltage Rating: 600V DC
Current per String: Up to 30A (fuse-dependent)
MCB Rating: 63A
Surge Protection: Type II DC SPD
Enclosure Rating: IP65 waterproof, outdoor-rated
Mounting Options: Wall mount or pole mount
Cable Glands: UV-resistant PG glands
Benefits of Using a DC PV Combiner Box
Using a quality combiner box like this one provides multiple advantages:
Safer and more organized solar panel wiring
Protection against overcurrent, short circuits, and lightning surges
Improved system reliability and reduced maintenance costs
Extended lifespan of solar panels and inverters
Better compatibility with dual MPPT inverter systems
Professional-grade installation standard
Pros and Cons
Pros
High safety with built-in MCB, fuses, and SPD
IP65 weatherproof design for outdoor use
Compatible with major inverter brands
Pre-wired for faster, cleaner installation
Ideal for residential and small commercial solar systems
Cons
Limited to 600V DC (larger systems may require a 1000V model)
Professional installation recommended for best performance and safety
Package Contents
1 × GearUP 12-Way 2 Strings DC Solar PV Combiner Box
Pre-installed MCB, DC fuses, and Type II SPD
UV-resistant cable glands
User manual and installation guide
